DP Technologies, Inc. offers a wide range of precision replacement parts for Burroughs check processing equipment that include Burroughs check sorters, Burroughs check encoders and Burroughs check processing equipment. Our parts are used throughout the different sections of Burroughs equipment including the feeder section, aligner section, high speed encoder module (HSEM), microfilmer and the stacker pockets.

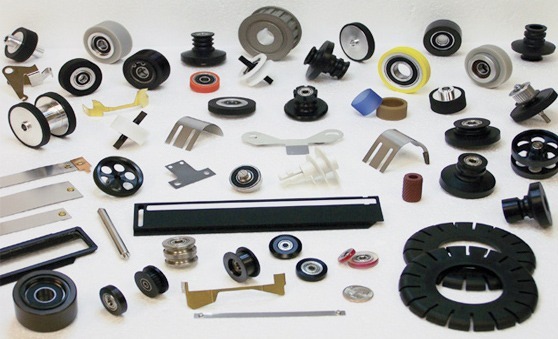

We stock many different types of feed rollers, drive rollers, pinch rollers, aligner disks and pulleys for Burroughs banking equipment as well as complete roller assemblies. For our list of replacement parts for Burroughs check processing equipment, click on the link below.
Our parts are used in the following Burroughs banking equipment: Encode100, SourceNDP, DP500, NDP300 / 575 / 600, DP800, NDP1150/1825 and NDP2000.
| PART NUMBER | PART DESCRIPTION |
| 1071 1539** | WHEEL ASSEMBLY |
| 1081 3335 | AUGER GEAR |
| 1089 3303 | ROLLER ONLY(Rubber) -TURN-IN ASSEMBLY |
| 1089 3311** | ROLLER ONLY(Metal) – TURN-IN ASSEMBLY |
| 1089 8435 | AUGER DRIVE GEAR |
| 1089 8492** | AUGER SPUR GEAR |
| 1321 2535 | PULLEY – FEEDER PLATE |
| 1321 2535-S | PULLEY – SHAFT |
| 1546 3458 | POCKET ROLLER |
| 1546 3474 | POCKET ROLLER |
| 2105 0182** | THROAT ROLLER & POST ASSY NEW |
| 2111 3964 | PULLEY – FEEDER PLATE |
| 2111 3964-S | PULLEY – SHAFT |
| 2111 4004 | PULLEY – FEEDER PLATE |
| 2111 4004-S | PULLEY – SHAFT |
| 2118 4080 | ALIGNMENT DISK |
| 2489 9023 | ROLLER ASSEMBLY |
| 2489 9114** | ROLLER ASSEMBLY – FLAT |
| 2495 2806 | ROLLER ASSEMBLY, MATRIX PRINTER |
| 2709 6148 | IDLER ROLLER, HSPE |
| 2716 4037 | STAND-BY ROLLER |
| 2716 5042 | FIRST ACCELERATOR ROLLER |
| 2974 7276** | DYNAVAR TAPE |
| 3127 0903** | DYNAVAR TAPE |
| 3127 9474 | PLATEN ARM ASSY, MATRIX PRINTER |
| 3129 0309-P | NON IMPACT ENDORSER PIN |
| 3129 4002 | FLAT BELT |
| 3129 9555 | PULLEY – FEEDER PLATE |
| 3129 9555-S | PULLEY SHAFT |
| 3136 5125 | POLY V PULLEY |
| 3136 5281** | POCKET SPRING – NEW STYLE |
| 3142 3536 | DRIVE ROLLER ASSY – 5 DEGREE |
| 3142 3551 | DRIVE ROLLER ASSY – 0 DEGREE |
| 3143 2008** | ROLLER ASSEMBLY- FLAT |
| 3252 3029** | IDLER ROLLER, ENCODER |
| 3265 1002 | PLATEN ASSEMBLY |
| 3269 7294** | PLATEN ARM ASSY, MATRIX PRINTER |
| 3270 8810 | SHAFT, HSPE |
| 3270 8828 | ARM, RIGHT, HSPE |
| 3270 8836 | ARM, LEFT, HSPE |
| 3271 5120** | AUGER SPUR GEAR |
| 3272 4635 | DETECTING SHAFT |
| 3272 5657 | ROLLER ASSY, MATRIX PRINTER |
| 3272 8834 | TIMING PULLEY |
| 3272 8875 | ROLLER ASSY – CROWN |
| 3794 7298** | IDLER ROLLER , ENCODER |
| 3798 2535 | PULLEY, READER |
| 3798 3863 | DRIVE ROLLER, FEEDER |
| 3831 3474-001** | DRIVE ROLLER, FEEDER |
| 3879 9862-P | PULLEY, FEEDER MOTOR |
| 3880 8374 | DRIVE ROLLER, FEEDER |
| 3881 7904-001 | IDLER ROLLER, MICROFILMER |
| 3882 6988 | ROLLER ASSEMBLY, ENCODER |
| 3883 5211-001** | MOTOR PULLEY, MICROFILMER |
| 3884 5160 | DRIVE ROLLER, FEEDER |
| 3962 9886 | RIBBON GUIDE |
| 3982 7597** | MOTOR PULLEY, MICROFILMER |
| 3982 8041 | PULLEY ASSEMBLY |
| 3983 0559 | DRIVE ROLLER, FEEDER |
| 3983 2563 | PULLEY, READER |
| 3983 4833** | IDLER ROLLER |
| 3986 2156** | O-RING ROLLER ASSEMBLY |
| 3986 2198 | DRIVE ROLLER, FEEDER |
| 3986 3071** | DRIVE ROLLER, FEEDER |
| 3986 4723 | DYNAVAR TAPE – SINGLE HEIGHT |
| 3986 4731 | DYNAVAR TAPE – DUAL HEIGHT |
| 3986 5894** | WHEEL ASSEMBLY |
| 3986 7478 | DRIVE ROLLER, FEEDER |
| 3987 4433-001 | PULLEY TENSIONER ASSY |
| 3995 0910 | PRESSURE ROLLER ASSY |
| 3995 1702 | FEEDER ROLLER |
| 3995 5141-R | IDLER ROLLER |
| 3995 5141-S | FLAT SPRING |
| 3996 1875** | IDLER ROLLER |
| 4139 1970 | PRESSURE ROLLER SHAFT |
| 4139 7159 | ENDORSER RIBBON SHIELD |
| 4139 7852 | LEAF SPRING, HSPE Single Tab |
| 4146 1450 | KNURLED ROLLER SET, HSPE |
| 4146 3282 | ENTER / EXIT ROLLER |
| 4146 3795 | FEEDER SHIELD |
| 4146 8109** | ROLLER & BRACKET ASSEMBLY NEW |
| ROLLER ONLY – RUBBER | |
| ROLLER ONLY – METAL | |
| 4146 8117** | THROAT ROLLER & POST ASSY NEW |
| 4146 8299** | POCKET SPRING – NEW STYLE |
| 4147 4867 | HEAD MOUNT ASSEMBLY |
| 4147 7167-001 | ROLLER / ENCODER ASSY |
| 4147 7365-001 | IDLER ASSEMBLY, OPTICAL ENCODER |
| 4328 0890-000 | ROLLER ASSEMBLY |
| 4330 1829-000 | LEAF SPRING, HSPE DoubleTab |
| 4332 8301-001 | PINCH ROLLER, HSEM 1000 DPM |
| 4332 8376 | ADJUSTING MECHANISM |
| 4333 7682-001 | PINCH ROLLER, HSEM 600/800 DPM |
| 4335 6149-000 | PRESSURE ROLLER ASSY |
| 4335 6435-000 | POCKET ROLLER ASSY |
| 4336 1641 | FEEDER SHIELD – NEW STYLE |
| 4344 1641 | FEEDER SHIELD – NEW STYLE |
| 4344 6723** | O-RING ROLLER ASSEMBLY |
| MISC. PARTS | |
| 75-2002-501 | Feeder Kit |
| 75-2148-908 | Feed Belt 5/pack |
| 75-2150-904 | Separator Belt 5/pack |
| 2371 2701 | Separator Belt (3142 1605) |
| 4344 1634 | Separator Belt |
| ** INDICATES PART IS ALSO SOLD UNDER ANOTHER PART NUMBER | |
